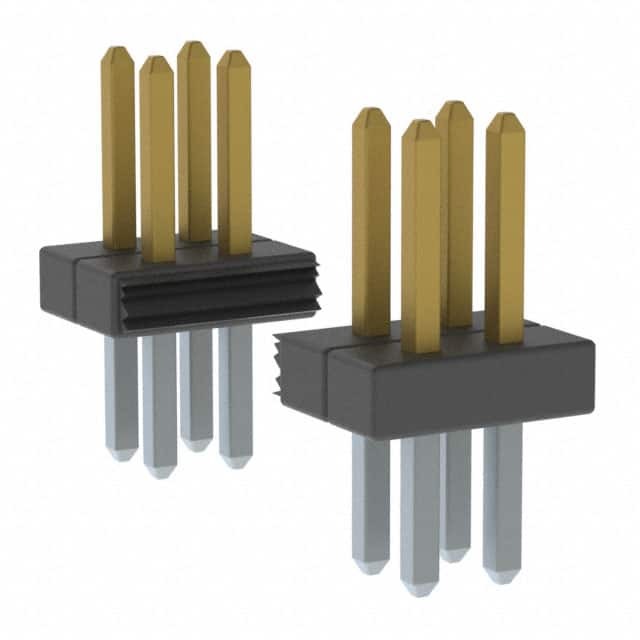

M50-3501042

SKU: 129706

Manufacturer: Harwin

Conn Unshrouded Header M 20 POS 1.27mm Solder ST Top Entry Thru-Hole Bulk/Loose

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Unshrouded Header
Gender	M
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Row Spacing (mm)	1.27
Current Rating-Max(A)	1/Contact
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	300
Packing Method	Bulk
Product Weight (g)	0.243
Length (mm)	12.7
Depth (mm)	3.4
Height (mm)	4
Tail Length (mm)	2.3
