M50-3120545

SKU: 158113

Manufacturer: Harwin

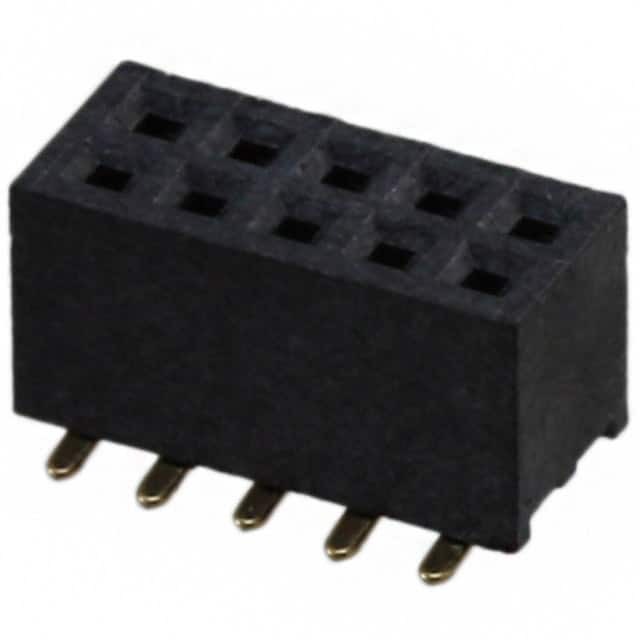

Conn Socket Strip SKT 10 POS 1.27mm Solder ST SMD Tube

1690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Socket Strip
Gender	F
Number of Contacts	10
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Row Spacing (mm)	1.27
Current Rating-Max(A)	1
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	100
Packing Method	Tube
Product Weight (g)	0.122
Length (mm)	6.7
Depth (mm)	4.5
Height (mm)	3.6
