9232486824

SKU: 52891

Manufacturer: HARTING Technology Group

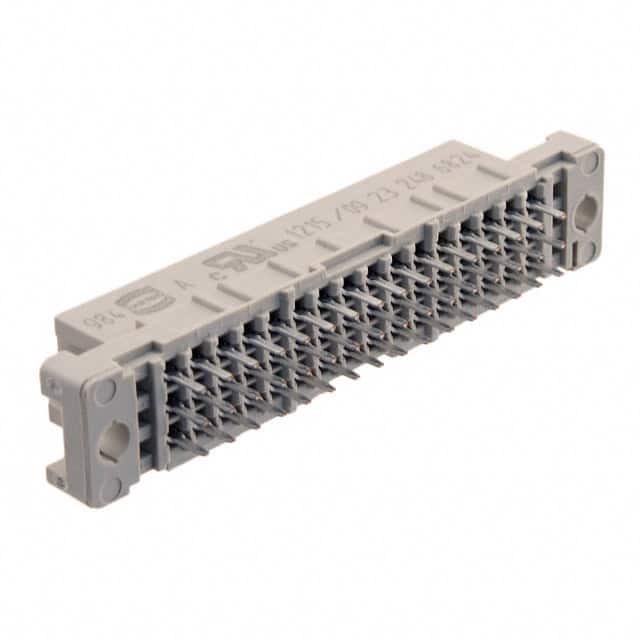

Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Box

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	DIN 41612
Gender	F
Number of Contacts	48
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	2
Insulation Resistance (MOhm)	1000000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	400
Packing Method	Box
Length (mm)	54
Depth (mm)	10.5
Height (mm)	11.6
