9060482905

SKU: 72152

Manufacturer: HARTING Technology Group

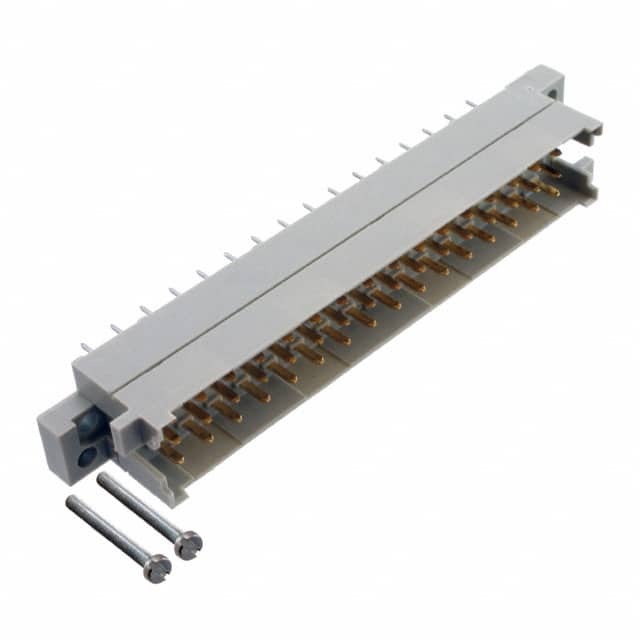

Conn DIN 41612 M 48 POS 5.08mm Wire Wrap ST Thru-Hole

420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	DIN 41612
Gender	M
Number of Contacts	48
Termination Method	Wire Wrap
Terminal Pitch (mm)	5.08
Body Orientation	Straight
Current Rating-Max(A)	6
Insulation Resistance (MOhm)	1000000
Maximum Contact Resistance (mOhm)	15
Mating Cycle (Cycles)	500
Product Weight (g)	20.04
Length (mm)	100.85
Depth (mm)	14.7
Height (mm)	18
Tail Length (mm)	3.7
