9031647921

SKU: 80967

Manufacturer: HARTING Technology Group

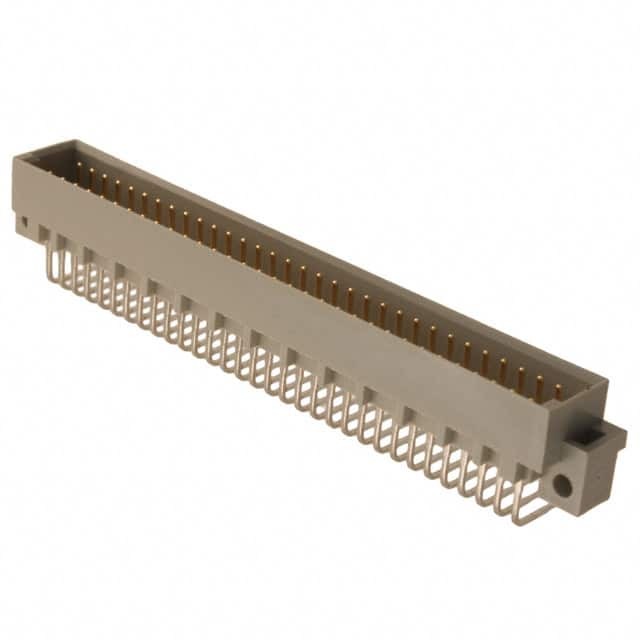

Conn DIN 41612 M 64 POS 2.54mm Solder RA Thru-Hole Box

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	DIN 41612
Gender	M
Number of Contacts	64
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Current Rating-Max(A)	2
Insulation Resistance (MOhm)	1000000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	50
Packing Method	Box
Length (mm)	94
Depth (mm)	17.72
Height (mm)	11
