MUR2040FCT

SKU: 77247

Manufacturer: Good-Ark Semiconductor

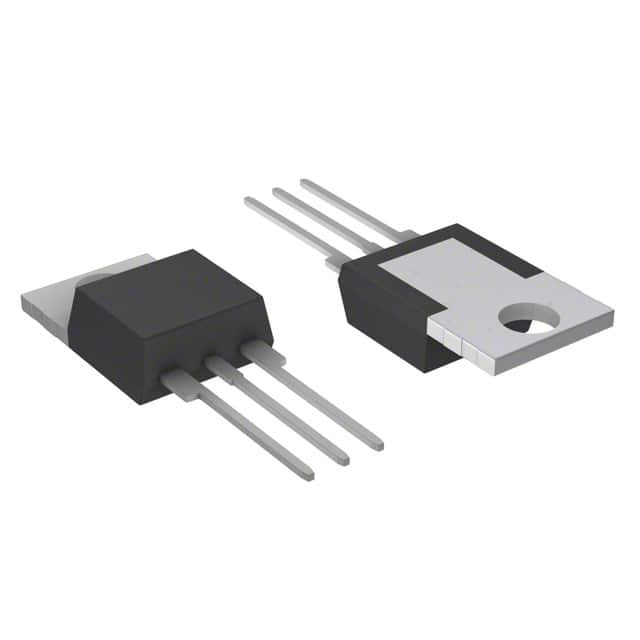

Diode Switching 400V 20A 3-Pin(3+Tab) ITO-220AB Tube

1620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	400
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	20
Peak Non-Repetitive Surge Current (A)	125
Peak Forward Voltage (V)	1.5@10A
Peak Reverse Current (uA)	10
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	ITO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	15.8
Package Length	10.1
Package Width	4.7
PCB changed	3
