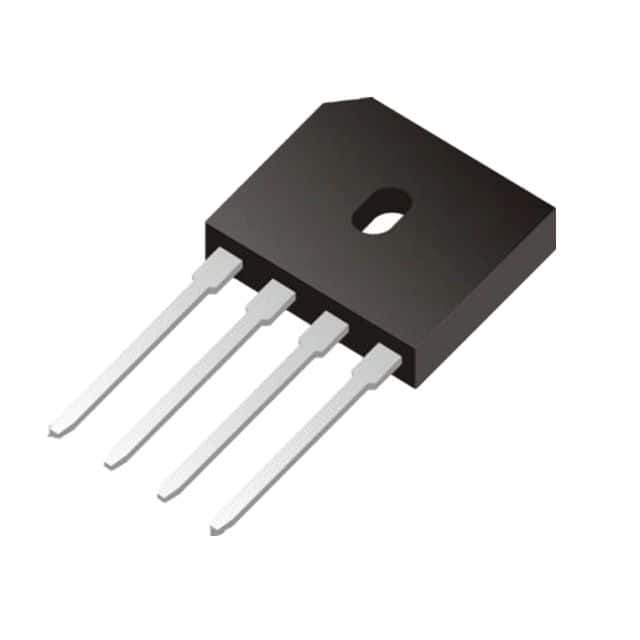

GBU806

SKU: 153443

Manufacturer: Good-Ark Semiconductor

Rectifier Bridge Diode Single 600V 8A 4-Pin

8570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Peak Average Forward Current (A)	8
Peak RMS Reverse Voltage (V)	420
Peak Non-Repetitive Forward Surge Current (A)	200
Peak Forward Voltage (V)	1@4A
Peak Reverse Current (uA)	5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Pin Count	4
Terminal Form	Through Hole
Package Height	18.8(Max)
Package Length	22.3(Max)
Package Width	4.7(Max)
