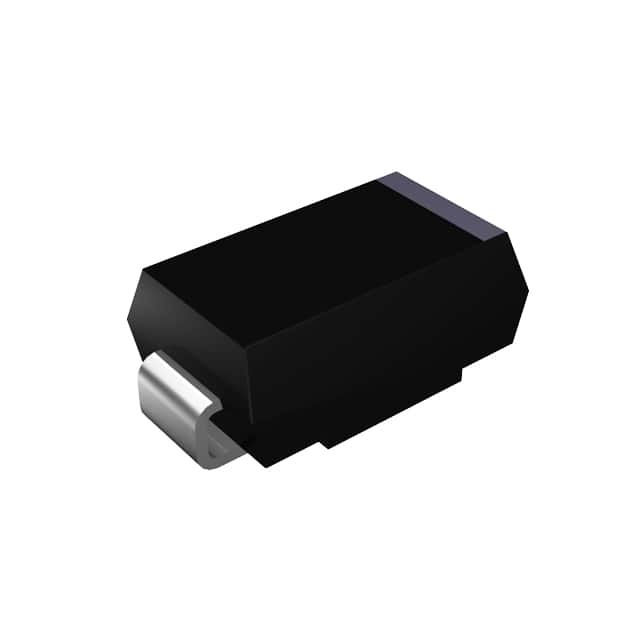

ES2D Good-Ark Semiconductor

ES2D

SKU: 117819

Manufacturer: Good-Ark Semiconductor

Rectifier Diode Switching 200V 2A 35ns 2-Pin SMB

Download sample

Request Free Samples

134530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	2
Peak Non-Repetitive Surge Current (A)	50
Peak Forward Voltage (V)	0.95
Peak Reverse Current (uA)	10
Peak Reverse Recovery Time (ns)	35
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Height	2.41(Max)
Package Length	4.75(Max)
Package Width	3.73(Max)
PCB changed	2
