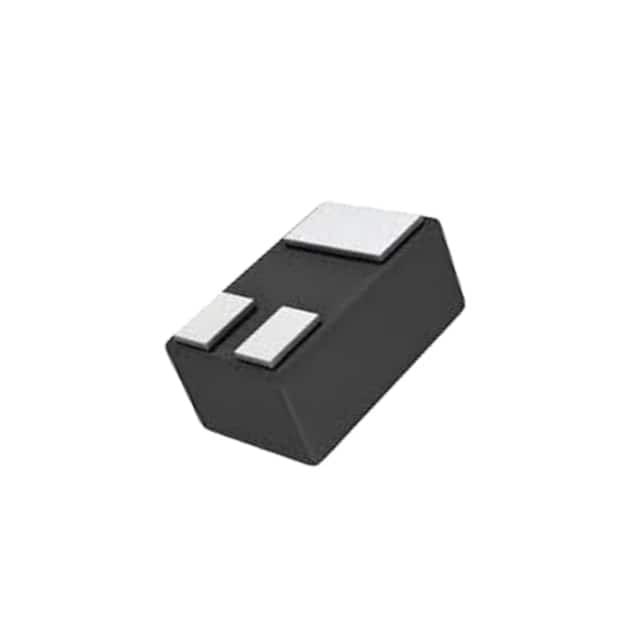

BZX584B5V6

SKU: 143396

Manufacturer: Good-Ark Semiconductor

Zener Diode Single 5.6V 2% 40Ohm 150mW 2-Pin SOD-523

2240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	5.6
Zener Voltage Tolerance	2%
Maximum Forward Voltage (V)	0.9
Maximum Power Dissipation (mW)	150
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	1
Maximum Zener Impedance (Ohm)	40
Maximum Power Dissipation @ 25C (mW)	150
Operating Temperature-Min	-55
Operating Temperature-Max	150
Typical Voltage Temperature Coefficient	0.25mV/°C
Original Package	SOD-523
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	0.7(Max)
Package Length	1.3(Max)
Package Width	0.85(Max)
