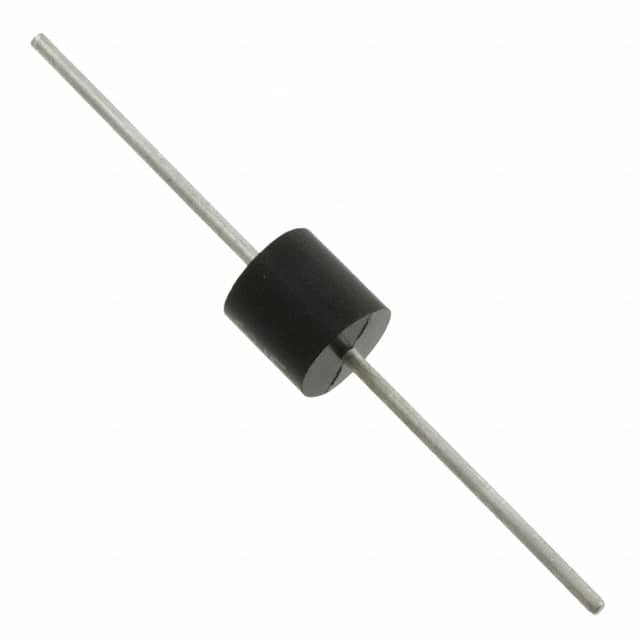

30KPA33A

SKU: 150148

Manufacturer: Good-Ark Semiconductor

TVS Diode Single Uni-Dir 33V 30KW 2-Pin Case P-600

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	36.9
Maximum Clamping Voltage (V)	58.5
Maximum Reverse Stand-Off Voltage (V)	33
Peak Forward Surge Current (A)	500
Maximum Peak Pulse Current (A)	517.9
Maximum Reverse Leakage Current (uA)	5000
Test Current (mA)	50
Peak Pulse Power Dissipation (W)	30000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	Case P-600
Pin Count	2
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Length	9.1(Max)
