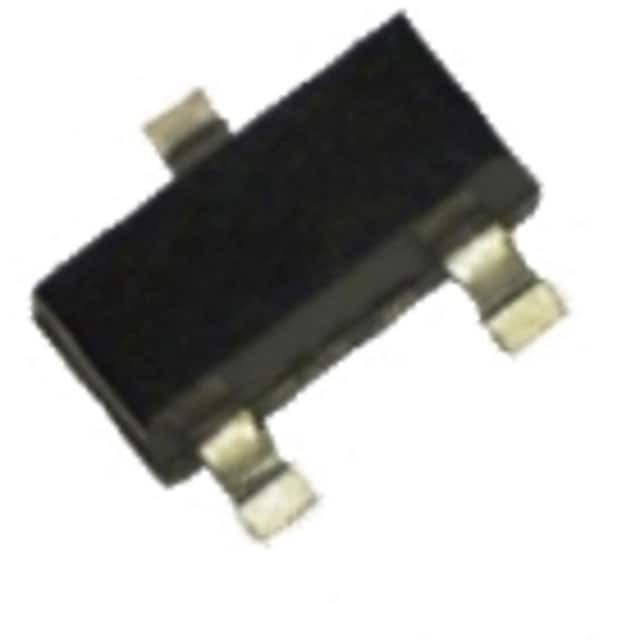

2N7002K

SKU: 9784

Manufacturer: Good-Ark Semiconductor

Trans MOSFET N-CH 60V 0.3A 3-Pin SOT-23 T/R

369770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.5
Maximum Continuous Drain Current (A)	0.3
Maximum Gate Source Leakage Current (nA)	10000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	3000@10V
Typical Gate Charge @ Vgs (nC)	0.4@4.5V
Typical Input Capacitance @ Vds (pF)	30@25V
Maximum Power Dissipation (mW)	430
Typical Turn-Off Delay Time (ns)	35(Max)
Typical Turn-On Delay Time (ns)	25(Max)
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3(Max)
Package Width	1.4(Max)
