1N6286A

SKU: 6734

Manufacturer: Good-Ark Semiconductor

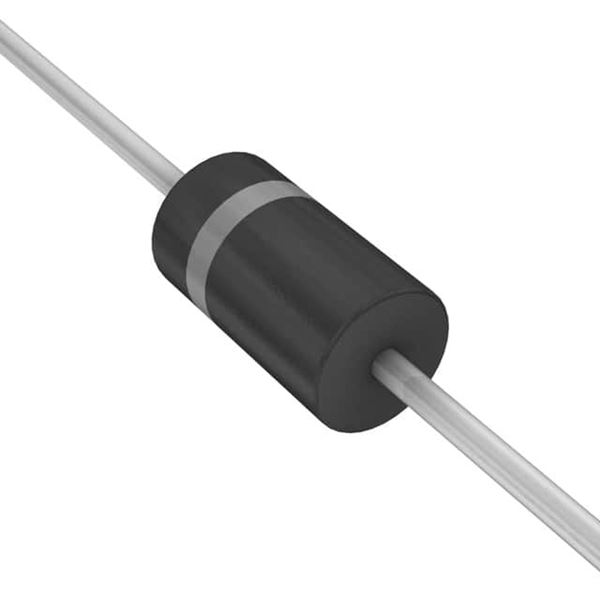

TVS Diode Single Uni-Dir 36.8V 1.5KW 2-Pin DO-201AE

1530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	40.9
Maximum Clamping Voltage (V)	59.3
Maximum Reverse Stand-Off Voltage (V)	36.8
Maximum Peak Pulse Current (A)	25.3
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500(Min)
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	DO-201AE
Pin Count	2
Standard Package Method	DO-201-AE
Diameter	5.3(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
