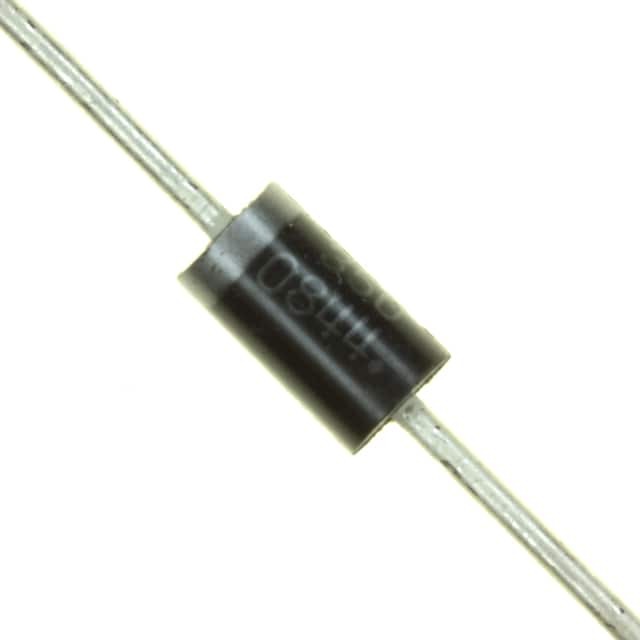

1N5400G Good-Ark Semiconductor

1N5400G

SKU: 15650

Manufacturer: Good-Ark Semiconductor

Rectifier Diode 50V 3A 2-Pin DO-201AD

Download sample

Request Free Samples

3560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Maximum DC Reverse Voltage (V)	50
Configuration	Single
Peak Reverse Repetitive Voltage (V)	50
Maximum Continuous Forward Current (A)	3
Peak Non-Repetitive Surge Current (A)	125
Peak Forward Voltage (V)	1.1
Peak Reverse Current (uA)	5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	DO-201AD
Pin Count	2
Standard Package Method	DO-201-AD
Diameter	5.3(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
