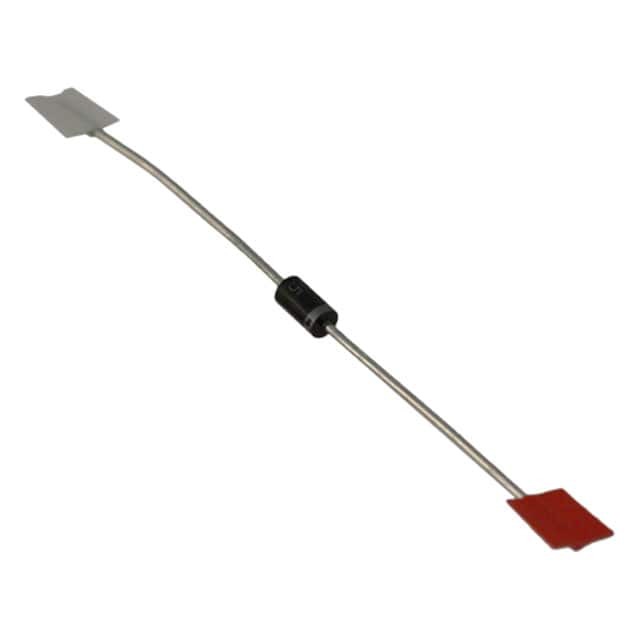

1N4007

SKU: 9121

Manufacturer: Good-Ark Semiconductor

Rectifier Diode Switching 1KV 1A 1000ns 2-Pin DO-41

814750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	1000
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Maximum Continuous Forward Current (A)	1@Ta=50C
Peak Non-Repetitive Surge Current (A)	30@Ta=50C
Peak Forward Voltage (V)	1.1
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	1000(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	125
Original Package	DO-41
Pin Count	2
Standard Package Method	DO-204-AL
Diameter	2.7(Max)
Terminal Form	Through Hole
Package Length	5.2(Max)
PCB changed	2
