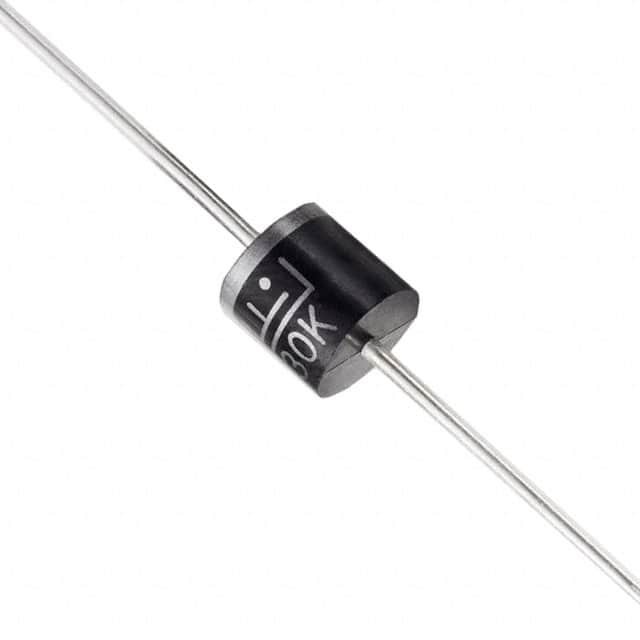

15KPA45A

SKU: 114584

Manufacturer: Good-Ark Semiconductor

TVS Diode Single Uni-Dir 45V 15KW 2-Pin Case P-600

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	50.3
Maximum Clamping Voltage (V)	72.8
Maximum Reverse Stand-Off Voltage (V)	45
Peak Forward Surge Current (A)	500
Maximum Peak Pulse Current (A)	207.4
Maximum Reverse Leakage Current (uA)	2
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	15000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	Case P-600
Pin Count	2
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Length	9.1(Max)
