FT311D-32L1C-T

SKU: 68471

Manufacturer: FTDI Chip

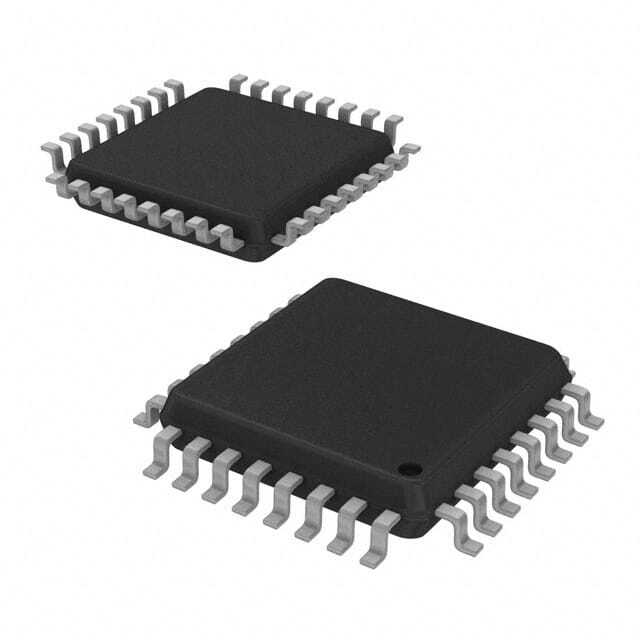

Full Speed USB Android Host IC USB 2.0 3.3V 32-Pin LQFP

3740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

Type	USB Android Host IC
USB Transceiver	Yes
USB Speed Type	Full Speed
Maximum Data Rate (Mbps)	12
Maximum Operating Frequency (MHz)	48
Protocols Supported	USB 2.0
Interface Type	I2C/SPI/UART
Operating Supply Voltage-Min (V)	2.97
Operating Supply Voltage-Max (V)	3.63
Typical Operating Supply Voltage (V)	3.3
Typical Supply Current (mA)	25
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Standard Package Method	QFP
Original Package	LQFP
Pin Count	32
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	7
Package Width	7
PCB changed	32
