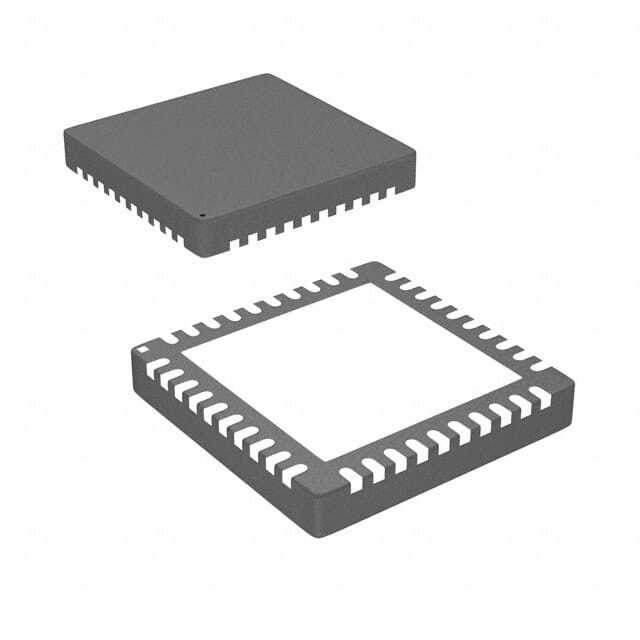

FT232RQ-REEL

SKU: 110812

Manufacturer: FTDI Chip

USB-to-UART 1-CH 256byte FIFO 5V 32-Pin QFN EP T/R

9880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR-99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of Channels per Chip	1
Transmit FIFO (byte)	256
Receive FIFO (byte)	128
Maximum Data Rate	3MBd
Transmitter and Receiver FIFO Counter	No
Standard Supported	RS-232
Process Technology	CMOS
Operating Supply Voltage-Min (V)	3.3
Operating Supply Voltage-Max (V)	5.25
Typical Operating Supply Voltage (V)	5
Maximum Supply Current (mA)	15(Typ)
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	85
DMA Support	No
False Start Bit Detection	No
Automatic Software Flow Control	No
Supplier Temperature Grade	Extended
Automatic Hardware Flow Control	No
Packing Method	Tape and Reel
Pin Count	32
Original Package	QFN EP
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.82
Package Length	5
Package Width	5
PCB changed	32
