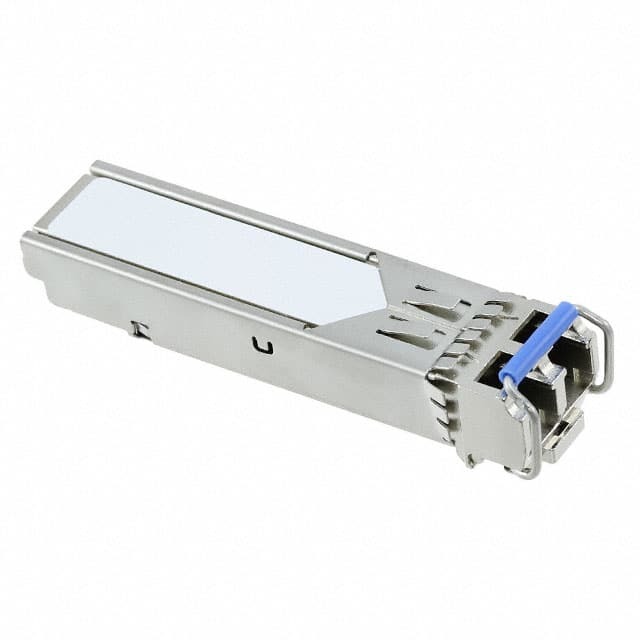

FTLF1318P3BTL

SKU: 117922

Manufacturer: Finisar

TX/RX Optical Fiber 1.25Gbps 20-Pin

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8517.62.00.90
Automotive	Unknown
PPAP	Unknown
Type	TX/RX
Emitter Type	FP Laser
Fiber Mode	Single Mode
Connector Type	LC
Maximum Data Rate	1.25Gbps
Peak Wavelength (nm)	1355(Max)/1600(Max)
Form Factor	SFP
Rise Time (ns)	0.26/0.3
Maximum Fall Time (ns)	0.26/0.3
Average Optical Output Power (dBm)	-9.5 to -3
Maximum Forward Current (mA)	300
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	600(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Pin Count	20
Terminal Form	Snap Fit To Panel
Package Height	12.43
Package Length	56.64
Package Width	14.8
