BZD27C24P

SKU: 102981

Manufacturer: Fagor Electronica

Zener Diode Single 24.2V 5% 15Ohm 2300mW Automotive 2-Pin DO-219AA T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	24.2
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	2300
Test Current (mA)	25
Maximum Reverse Leakage Current (uA)	1
Maximum Zener Impedance (Ohm)	15
Maximum Power Dissipation @ 25C (mW)	1000
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	0.085%/°C
Packing Method	Tape and Reel

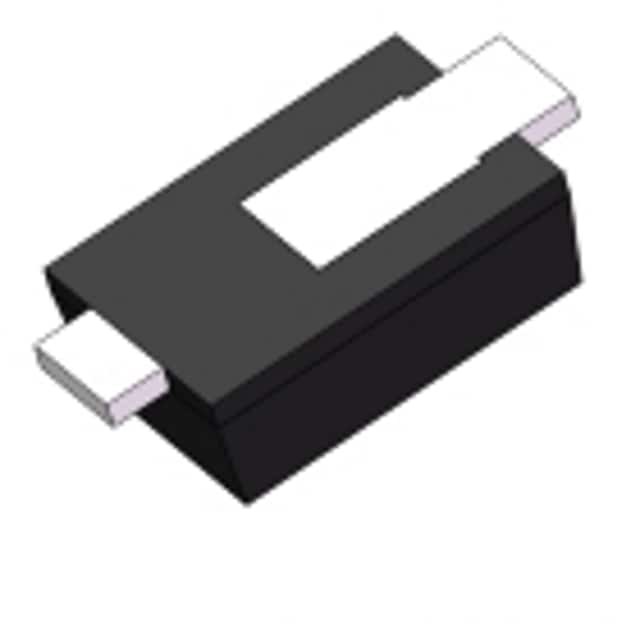

Original Package	DO-219AA
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.43(Max)
Package Length	2.9(Max)
Package Width	1.9(Max)
PCB changed	2
