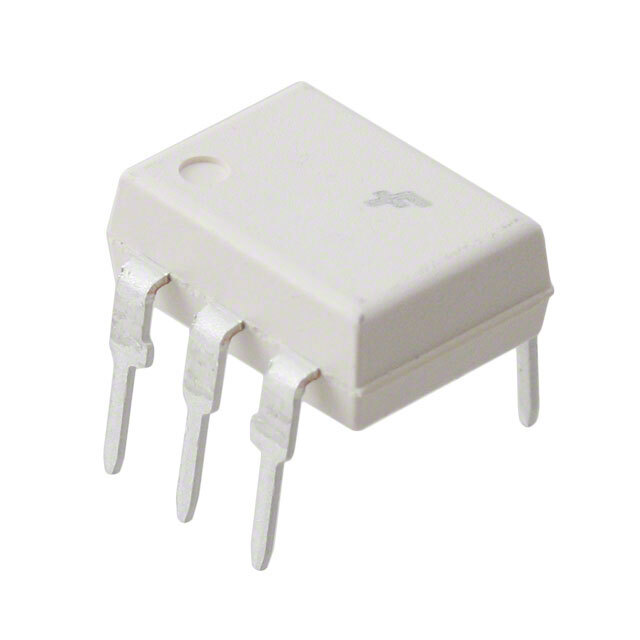

TIL113

SKU: 36226

Manufacturer: EVERLIGHT Electronics Co., Ltd

Optocoupler DC-IN 1-CH Darlington With Base DC-OUT 6-Pin DIP Tube

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Darlington With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.5
Collector-Emitter Voltage-Max (V)	55
Standard	CSA
Maximum Collector-Emitter Saturation Voltage (mV)	1200
Maximum Power Dissipation (mW)	200
Typical Forward Voltage (V)	1.2
Maximum Reverse Voltage (V)	6
Maximum Forward Current (mA)	60
Packing Method	Tube
Minimum Current Transfer Ratio (%)	300
Current Transfer Ratio Test Current (mA)	10
Standard Package Method	DIP
Pin Count	6
Original Package	DIP
Terminal Form	Through Hole
Package Height	3.5
Package Length	7.12
Package Width	6.5
PCB changed	6
