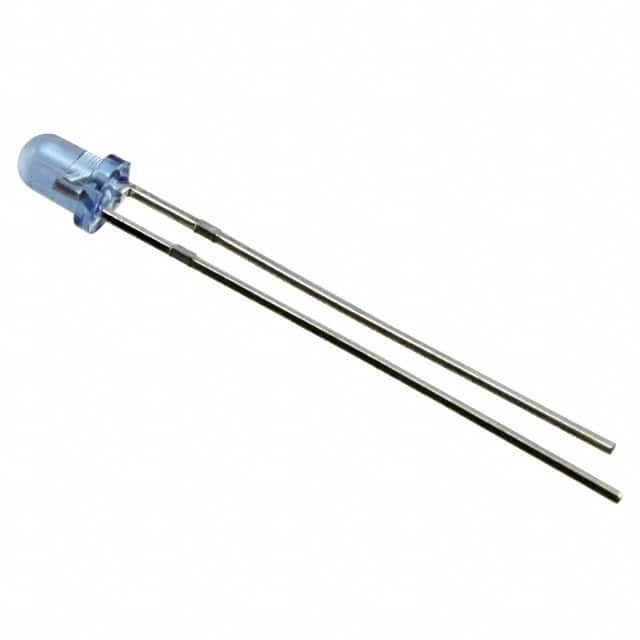

IR204-H60

SKU: 103839

Manufacturer: EVERLIGHT Electronics Co., Ltd

Infrared Emitter 940nm 30mW/sr Circular Top Mount 2-Pin T-1 Bag

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Peak Wavelength (nm)	940
LED Body Material	GaAlAs
Lens Dimensions (mm)	4x4x5.2
Intensity	30mW/sr
Viewing Angle (°)	50
Maximum Forward Voltage (V)	1.8
Reverse Voltage (V)	5
Maximum Forward Current (mA)	100
Maximum Reverse Current (uA)	10
Test Current (mA)	100
Maximum Power Dissipation (mW)	150
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bag
High Brightness	No
High Power	Yes
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	T-1
Pin Count	2
Standard Package Method	T-1
Diameter	4
Terminal Form	Through Hole
Package Height	5.2
PCB changed	2
