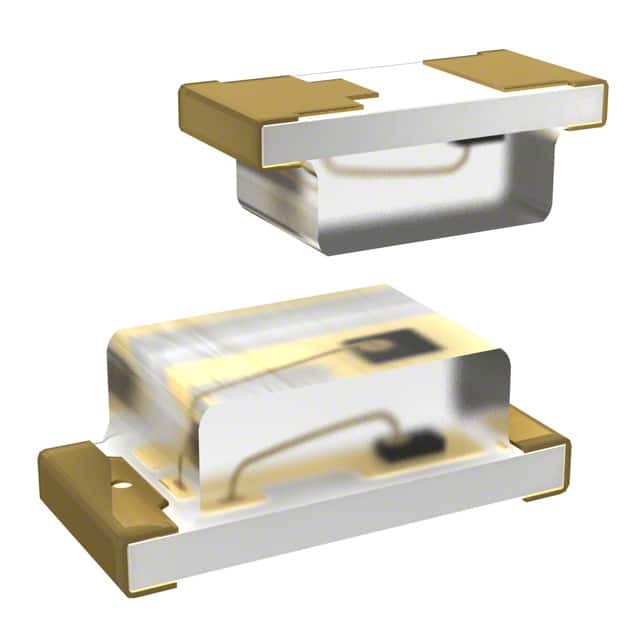

IR19-315C/TR8

SKU: 125146

Manufacturer: EVERLIGHT Electronics Co., Ltd

Infrared Emitter 940nm 4mW/sr Rectangular Top Mount 2-Pin SMD T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Peak Wavelength (nm)	940
LED Body Material	GaAlAs
Lens Dimensions (mm)	1.2x0.8x0.5
Intensity	4mW/sr
Viewing Angle (°)	140
Maximum Forward Voltage (V)	1.8
Reverse Voltage (V)	5
Maximum Forward Current (mA)	65
Maximum Reverse Current (uA)	10
Test Current (mA)	100
Maximum Power Dissipation (mW)	130
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
High Brightness	No
High Power	No
Lens Shape Type	Rectangular
Mounting Orientation	Top Mount
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Length	1.7
Package Width	0.8
PCB changed	2
