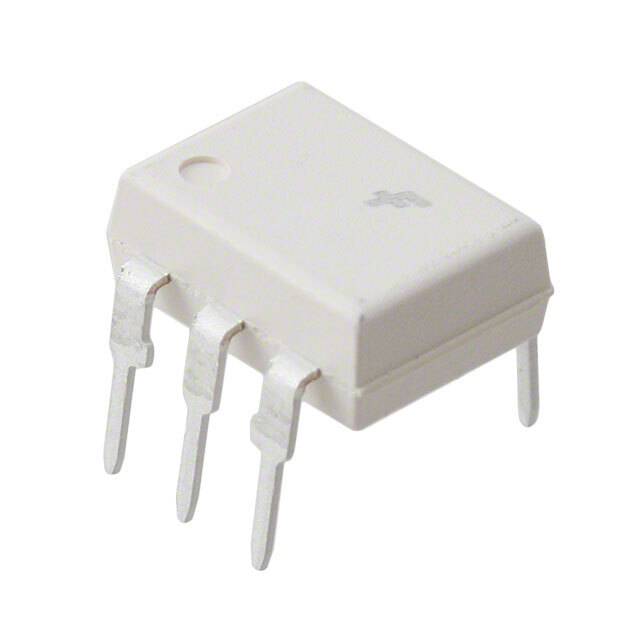

H11L3

SKU: 117972

Manufacturer: EVERLIGHT Electronics Co., Ltd

Optocoupler Logic-Out DC-IN 1-CH 6-Pin DIP

1120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Logic Gate Type	AND Schmitt
Number of Channels per Chip	1
Polarity	Inverting
Direction Type	Uni-Directional
Minimum Isolation Voltage (Vrms)	5000
Typical Rise Time (us)	0.1
Typical Fall Time (us)	0.1
Standard	CSA
Input Type	DC
Maximum Forward Current (mA)	60
Maximum Continuous Output Current (mA)	50
Typical Forward Voltage (V)	1.15
Maximum Forward Voltage (V)	1.5
Maximum Reverse Voltage (V)	6
Maximum Power Dissipation (mW)	250
Operating Temperature-Min	-55
Operating Temperature-Max	100
Standard Package Method	DIP
Original Package	DIP
Pin Count	6
Terminal Form	Through Hole
Package Height	3.5
Package Length	7.12
Package Width	6.5
PCB changed	6
