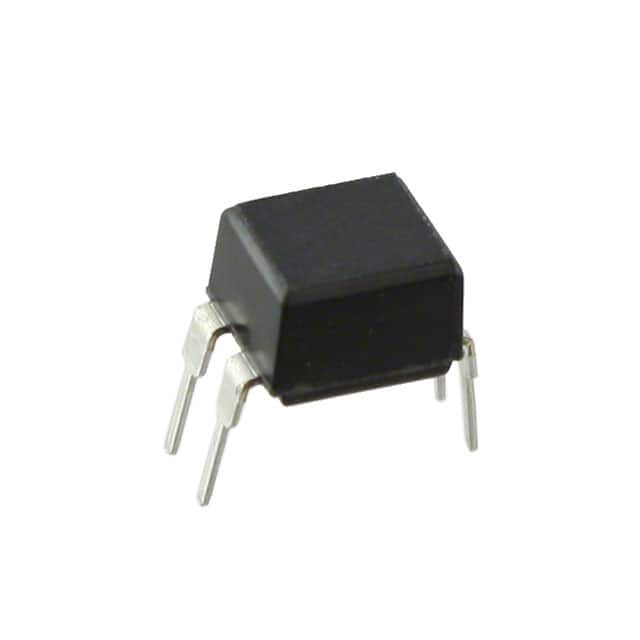

EL815

SKU: 54269

Manufacturer: EVERLIGHT Electronics Co., Ltd

DC-IN 1-CH Darlington DC-OUT 4-Pin PDIP Tube

2360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Darlington
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	110
Maximum Forward Voltage (V)	1.4
Collector-Emitter Voltage-Max (V)	35
Maximum Current Transfer Ratio (%)	7500
Standard	cUL
Maximum Collector Current (mA)	80
Maximum Collector-Emitter Saturation Voltage (mV)	1000
Maximum Power Dissipation (mW)	200
Maximum Reverse Voltage (V)	6
Typical Forward Voltage (V)	1.2
Maximum Rise Time (us)	300
Maximum Fall Time (us)	250
Maximum Forward Current (mA)	60
Packing Method	Tube
Minimum Current Transfer Ratio (%)	600
Current Transfer Ratio Test Current (mA)	1
Typical Rise Time (us)	60
Typical Fall Time (us)	53
Standard Package Method	DIP
Pin Count	4
Original Package	PDIP
Terminal Form	Through Hole
Package Length	4.58
Package Width	6.5
PCB changed	4
