67-22SRUGC/TR8

SKU: 130532

Manufacturer: EVERLIGHT Electronics Co., Ltd

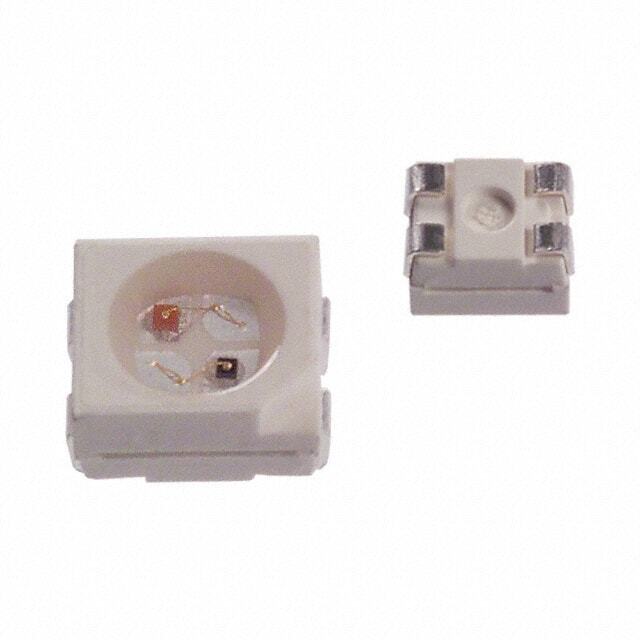

LED Bi-Color Green/Red 570nm/660nm 4-Pin PLCC T/R

790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Bi-Color
Product Category	Chip LED
Color	Green/Red
Number of LEDs	2
LED Body Material	GaP
Lens Shape Type	Circular
Lens Dimensions (mm)	2.4x2.4x0.95
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	25.1mcd
Dominant Wavelength (nm)	571/643
Peak Wavelength (nm)	570/660
Viewing Angle (°)	120
Maximum Forward Current (mA)	30/40
Test Current (mA)	20
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	100/110
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Super Green/Super Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	PLCC
Pin Count	4
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	1.9
Package Length	2.7
Package Width	3.2
PCB changed	4
