19-213SDRC/S259/TR8

SKU: 7768

Manufacturer: EVERLIGHT Electronics Co., Ltd

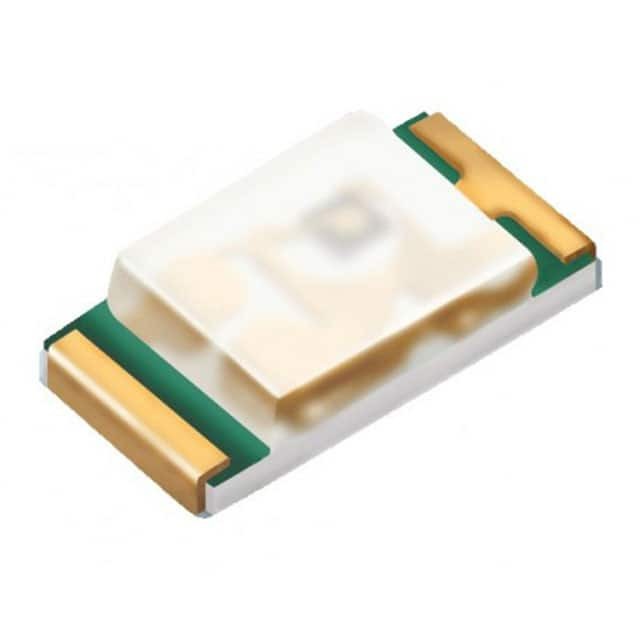

LED Uni-Color Deep Red 650nm Automotive 2-Pin Chip 0603(1608Metric) T/R

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
Automotive	Unknown
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.2x0.8x0.4
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	50mcd(Max)
Dominant Wavelength (nm)	643(Max)
Peak Wavelength (nm)	650
Viewing Angle (°)	120
Maximum Forward Current (mA)	25
Test Current (mA)	10
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	60
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Deep Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Case 0603(1608Metric)
Pin Count	2
Terminal Form	Surface Mount
Package Length	1.6
Package Width	0.8
