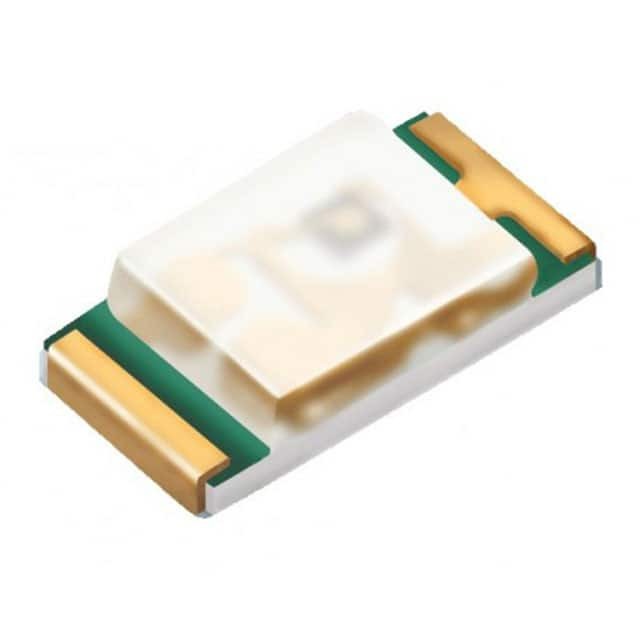

19-213/GVC-AMNB/3T

SKU: 8014

Manufacturer: EVERLIGHT Electronics Co., Ltd

LED Uni-Color Green 568nm Automotive 2-Pin Chip LED T/R

2700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.40.20.00
Automotive	Yes
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.2x0.8x0.4
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	45mcd(Max)
Dominant Wavelength (nm)	571.5(Max)
Peak Wavelength (nm)	568
Viewing Angle (°)	120
Maximum Forward Current (mA)	25
Test Current (mA)	20
Maximum Forward Voltage (V)	2.35
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	110
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	2
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Length	1.6
Package Width	0.8
