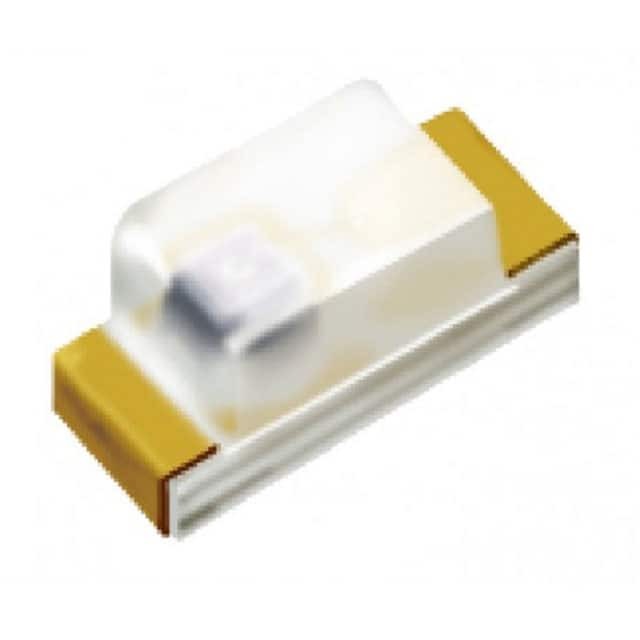

17-21SURC/S530-A2/TR8

SKU: 5828

Manufacturer: EVERLIGHT Electronics Co., Ltd

LED Uni-Color Brilliant Red 632nm 2-Pin Chip 0805(2012Metric) T/R

112520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.4x1.25x0.5
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	38mcd
Dominant Wavelength (nm)	624
Peak Wavelength (nm)	632
Viewing Angle (°)	140
Maximum Forward Current (mA)	25
Test Current (mA)	20
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	60
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Brilliant Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Case 0805(2012Metric)
Pin Count	2
Terminal Form	Surface Mount
Package Length	2
Package Width	1.25
