17-215SYGC/S530-E2/TR8

SKU: 9715

Manufacturer: EVERLIGHT Electronics Co., Ltd

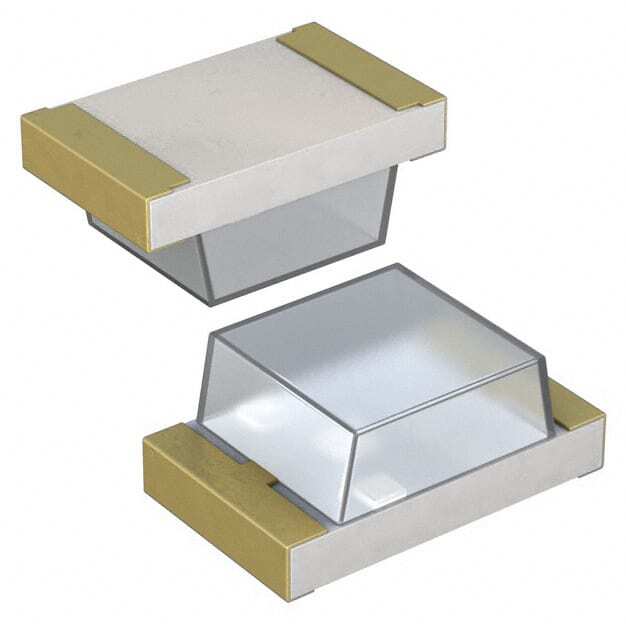

LED Uni-Color Super Yellow Green 575nm Automotive 2-Pin SMD T/R

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.40.20.00
Automotive	Unknown
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color	Yellow Green
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	17mcd
Dominant Wavelength (nm)	573
Peak Wavelength (nm)	575
Viewing Angle (°)	130
Maximum Forward Current (mA)	25
Test Current (mA)	20
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	60
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Super Yellow Green
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Length	2
Package Width	1.25
PCB changed	2
