104146 ERNI Electronics

104146

SKU: 100417

Manufacturer: ERNI Electronics

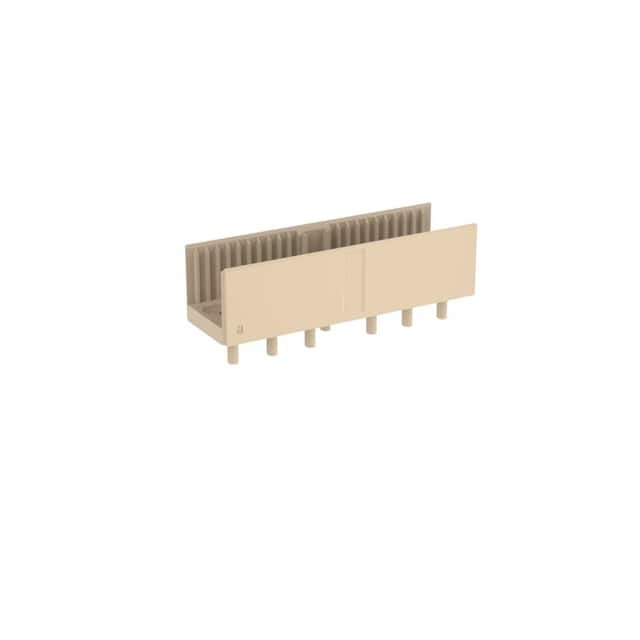

Conn Hard Metric M 6Cavity POS 7.5mm Press Fit ST Thru-Hole

Download sample

Request Free Samples

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	Hard Metric
Gender	M
Number of Contacts	6Cavity
Termination Method	Press Fit
Terminal Pitch (mm)	7.5
Body Orientation	Straight
Speed Rating (Gbps)	2
Current Rating-Max(A)	0.9
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	250
Length (mm)	50
Depth (mm)	15.4
Height (mm)	13.45
