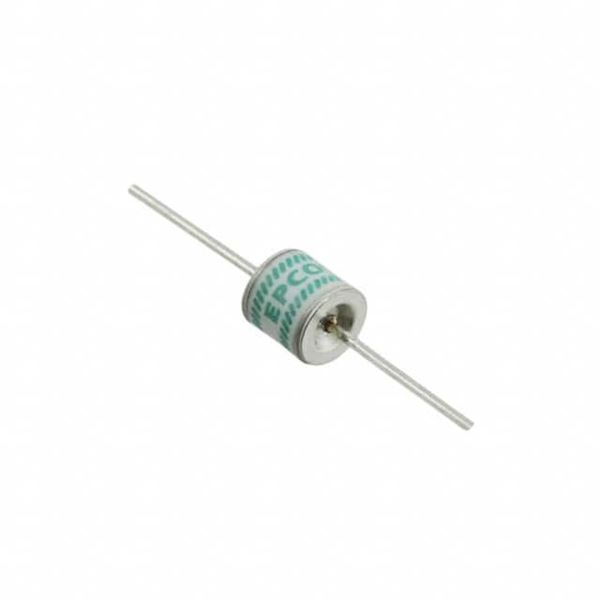

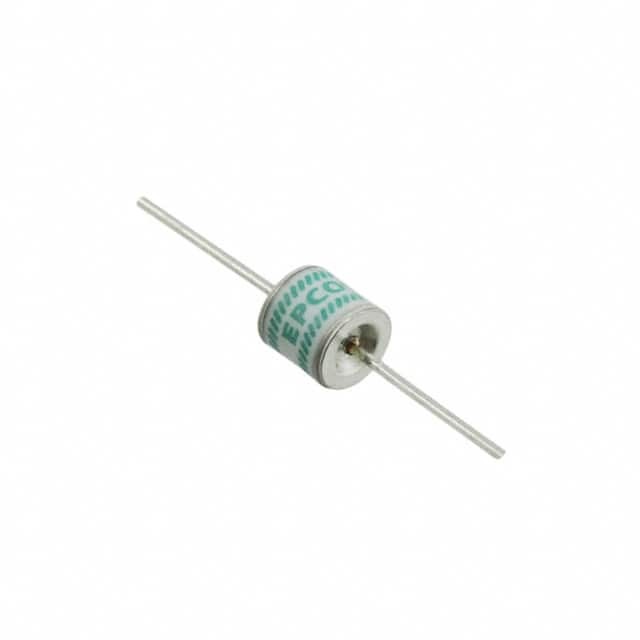

B88069X2590S102

SKU: 136267

Manufacturer: EPCOS (TDK)

Gas Discharge Tubes 4500VDC 10kADC 10AAC 1pF Axial Thru-Hole

1700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8535.40.00.00
Automotive	No
PPAP	No
DC Sparkover Voltage Tolerance	±20%
Typical DC Sparkover Voltage @ 100V/s (V)	4500
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	10
Typical AC Discharge Current @ 1s @ <= 10Times (A)	10
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	1
Number of Electrodes	2
Terminal Form	Axial
Number of Terminals	2
Operating Temperature-Min	-40
Packing Method	Tape and Reel
Operating Temperature-Max	125
Lead Diameter (mm)	1
Length (mm)	7.9
Depth (mm)	8
Height (mm)	8
Failsafe Protection	No
