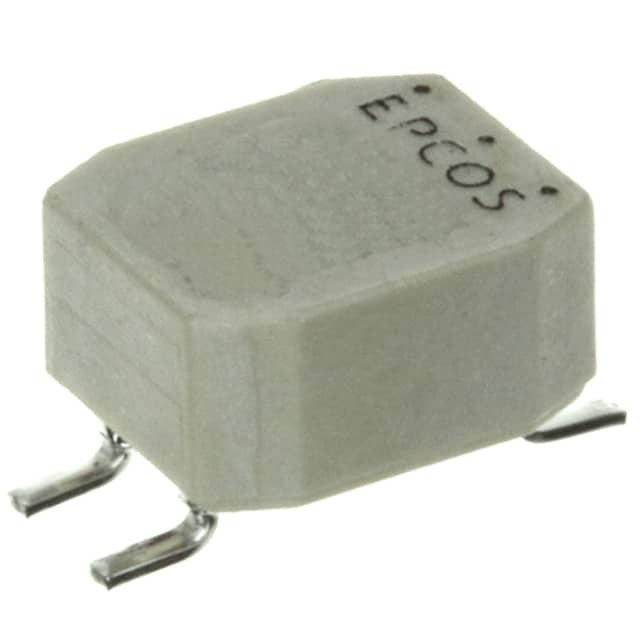

B82793C476N265 EPCOS (TDK)

B82793C476N265

SKU: 32184

Manufacturer: EPCOS (TDK)

Common Mode Chokes Dual 47000uH 24kOhm 10kHz 0.1A 3.7Ohm DCR SMD Automotive T/R

Download sample

Request Free Samples

3190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Data Line/Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	47000u
Leakage Inductance (H)	1.2u
Impedance (Ohm)	24k
Test Frequency (Hz)	10k
Maximum DC Current (A)	0.1
Maximum DC Resistance (Ohm)	3.7(Typ)
Voltage Rating	80VDC
Withstand Voltage	750VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	9.4
Depth (mm)	6
