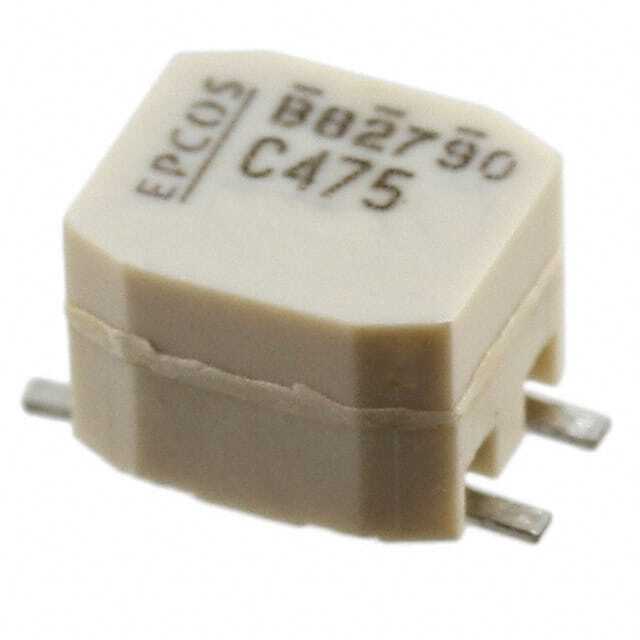

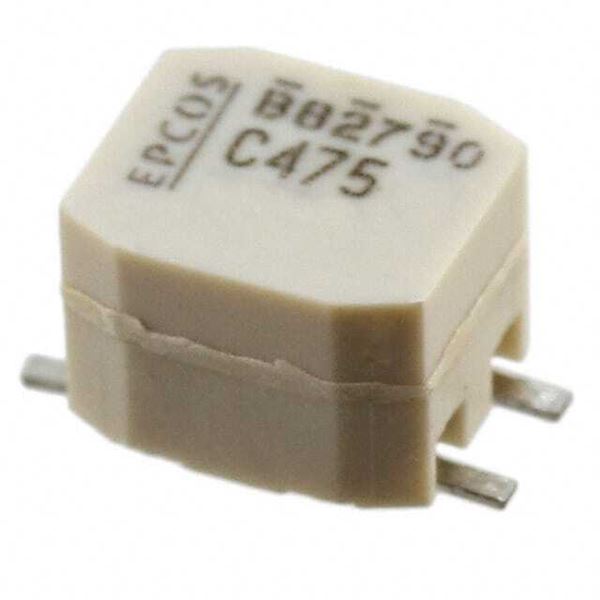

B82790C475N265 EPCOS (TDK)

B82790C475N265

SKU: 102841

Manufacturer: EPCOS (TDK)

Common Mode Chokes Dual 4700uH 10kHz 0.2A 0.51Ohm DCR SMD Automotive T/R

Download sample

Request Free Samples

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Data Line/Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	4700u
Leakage Inductance (H)	300n
Test Frequency (Hz)	10k
Maximum DC Current (A)	0.2
Maximum DC Resistance (Ohm)	0.51(Typ)
Voltage Rating	42VAC
Withstand Voltage	250VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	9.4
Depth (mm)	6
