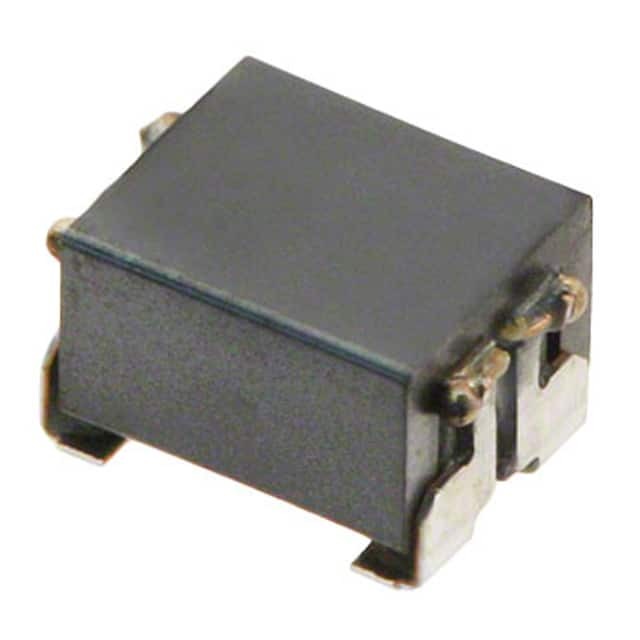

B82789C0513N002 EPCOS (TDK)

B82789C0513N002

SKU: 81622

Manufacturer: EPCOS (TDK)

Common Mode Chokes Dual 51uH 2.8kOhm 100kHz 0.25A 0.55Ohm DCR SMD Automotive T/R

Download sample

Request Free Samples

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Data Line/Signal Line
Configuration	Dual
Number of Lines	2
Inductance (H)	51u
Leakage Inductance (H)	100n
Impedance (Ohm)	0.55
Test Frequency (Hz)	100k
Maximum DC Current (A)	0.25
Maximum DC Resistance (Ohm)	0.55
Voltage Rating	42VAC
Withstand Voltage	250VDC
Terminal Form	Surface Mount
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	5.2
Depth (mm)	3.5
Height (mm)	3
