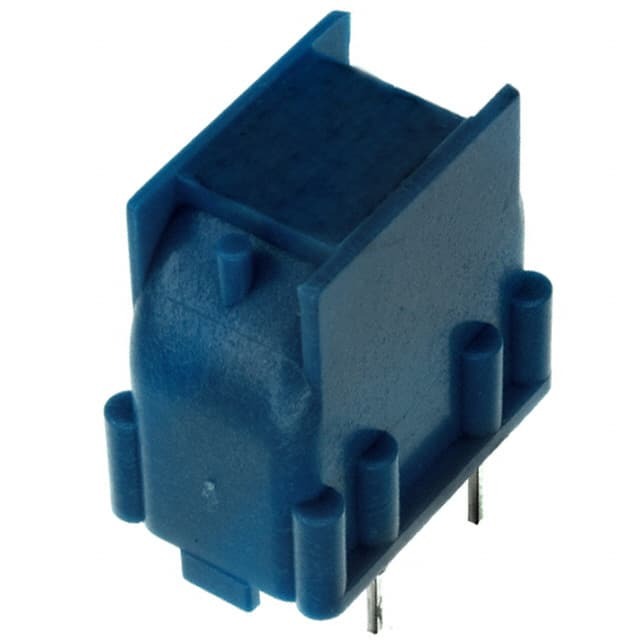

B82722J2202N1 EPCOS (TDK)

B82722J2202N1

SKU: 114963

Manufacturer: EPCOS (TDK)

Common Mode Chokes Dual 2.2mH 10kHz 2A 0.13Ohm DCR Thru-Hole Automotive Box

Download sample

Request Free Samples

1830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Power Line
Configuration	Dual
Number of Lines	2
Inductance (H)	2.2m
Leakage Inductance (H)	30u
Test Frequency (Hz)	10k
Maximum DC Current (A)	2
Maximum DC Resistance (Ohm)	0.13(Typ)
Voltage Rating	250VAC
Withstand Voltage	1.5kVAC
Terminal Form	Through Hole
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Box
Length (mm)	23.3
Depth (mm)	16.1
