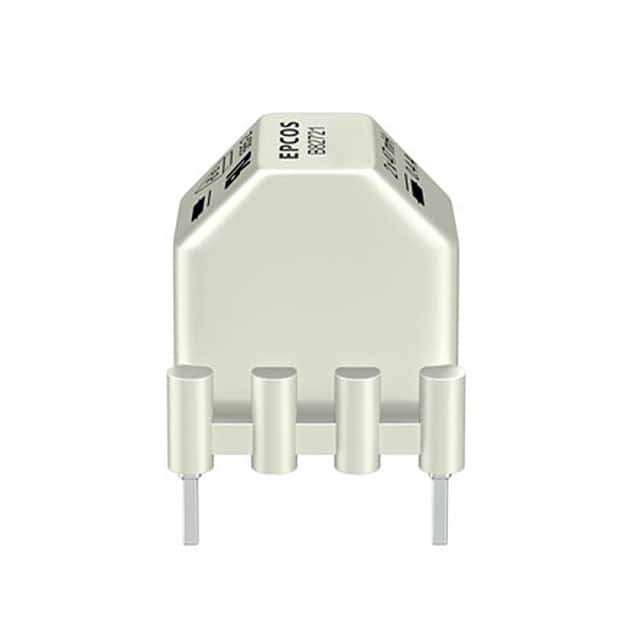

    B82721K2602N020

    SKU: 58524
    Manufacturer: EPCOS (TDK)
    Common Mode Chokes Dual 200uH 100kHz 6A 0.015Ohm DCR Thru-Hole Automotive Box
    2110 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Type Power Line
    Configuration Dual
    Number of Lines 2
    Inductance (H) 200u
    Leakage Inductance (H) 2.5u
    Test Frequency (Hz) 100k
    Maximum DC Current (A) 6
    Maximum DC Resistance (Ohm) 0.015(Typ)
    Voltage Rating 250VAC
    Withstand Voltage 1.5kVAC
    Terminal Form Through Hole
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Packing Method Box
    Length (mm) 18.2
    Depth (mm) 13.2
