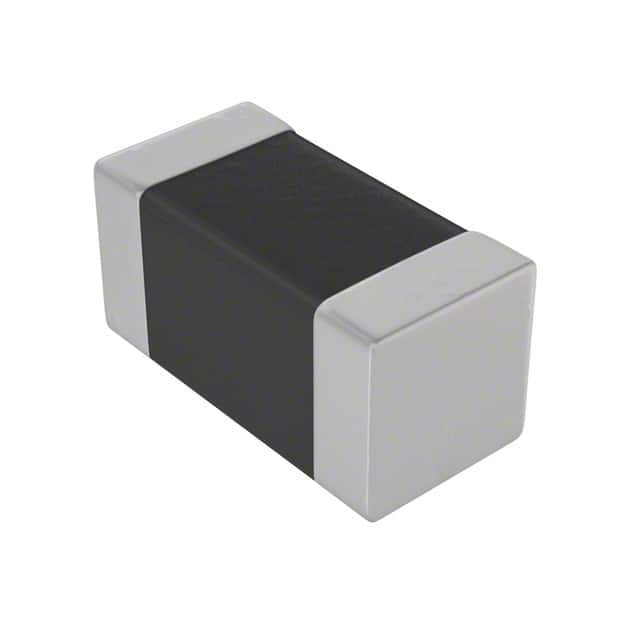

B82496C3479Z

SKU: 72543

Manufacturer: EPCOS (TDK)

Inductor RF Laser Cut 0.0047uH 0.2nH 100MHz 14Q-Factor Copper Plated Ceramic 0.8A 0.1Ohm DCR 0603 Automotive T/R

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	RF
Technology	Laser Cut
Core Body Material	Copper Plated Ceramic
Inductance (H)	0.0047u
Tolerance	0.2nH
Inductance Test Frequency (Hz)	100M
Maximum DC Current (A)	0.8
Maximum DC Resistance (Ohm)	0.1
Minimum Quality Factor	14
Quality Test Frequency (Hz)	100M
Minimum Self Resonant Frequency (Hz)	7000M
Number of Terminals	2
Case Size	0603
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	1.7
Terminal Form	Surface Mount
Depth (mm)	0.9
