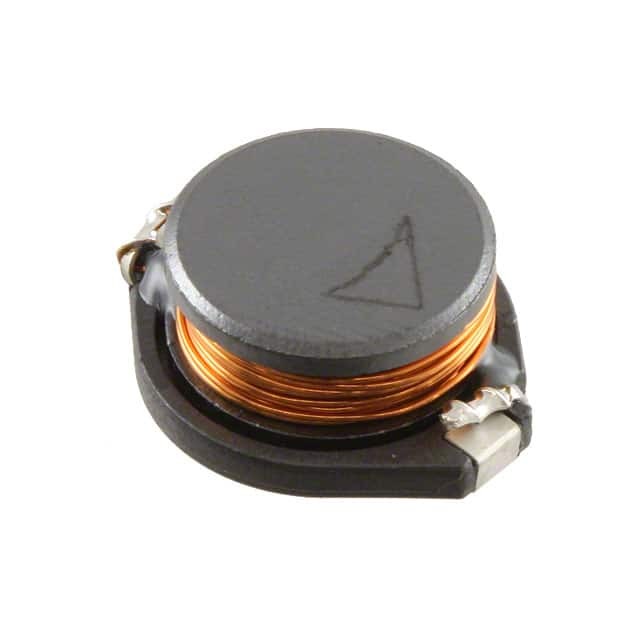

B82479A1154M

SKU: 67606

Manufacturer: EPCOS (TDK)

Inductor Power Wirewound 150uH 20% 100KHz Ferrite 1.5A 0.25Ohm DCR Automotive T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	150u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	1.5
Maximum Saturation Current (A)	2.6
Maximum DC Resistance (Ohm)	0.25
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	18.54
Depth (mm)	15.24
