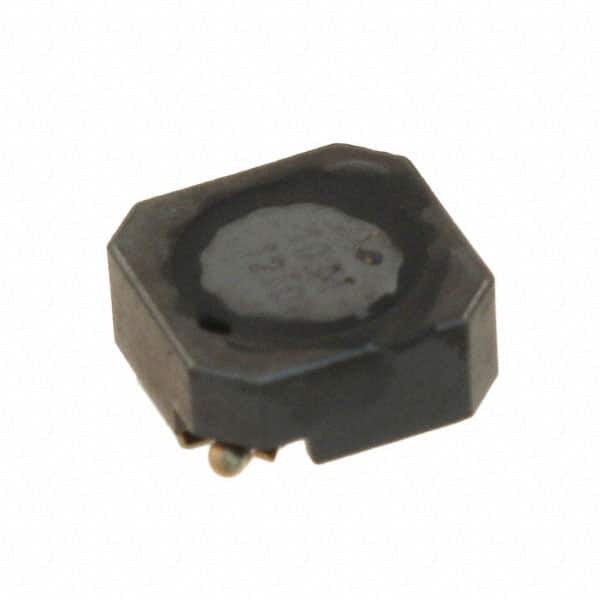

B82462G4104M

SKU: 122091

Manufacturer: EPCOS (TDK)

Inductor Power Shielded Wirewound 100uH 20% 100KHz Ferrite 0.53A 0.58Ohm DCR 2424 Automotive T/R

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	100u
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.53(Typ)
Maximum Saturation Current (A)	0.57(Typ)
Maximum DC Resistance (Ohm)	0.58
Number of Terminals	2
Case Size	2424
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	6.3
Terminal Form	Surface Mount
Depth (mm)	6.3
