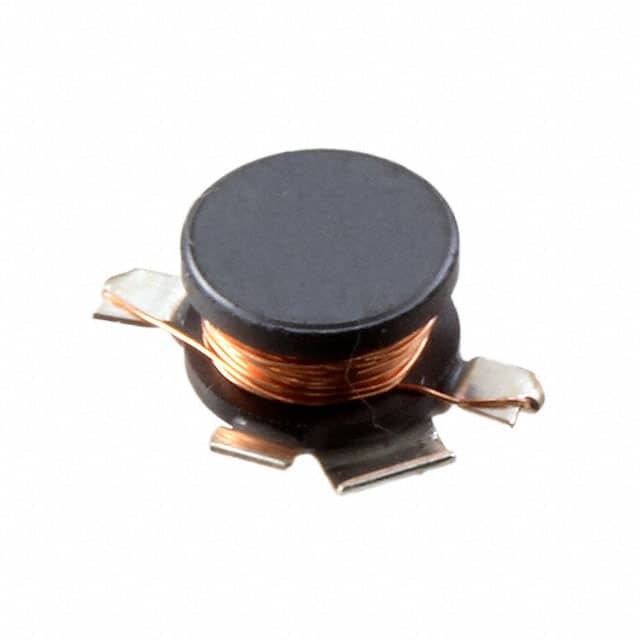

B82462A4473K

SKU: 39321

Manufacturer: EPCOS (TDK)

Inductor Power Wirewound 47uH 10% 100KHz Ferrite 0.54A 0.64Ohm DCR Automotive T/R

17040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Core Body Material	Ferrite
Inductance (H)	47u
Tolerance	10%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.54
Maximum Saturation Current (A)	0.82
Maximum DC Resistance (Ohm)	0.64
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	6.2
Depth (mm)	6
