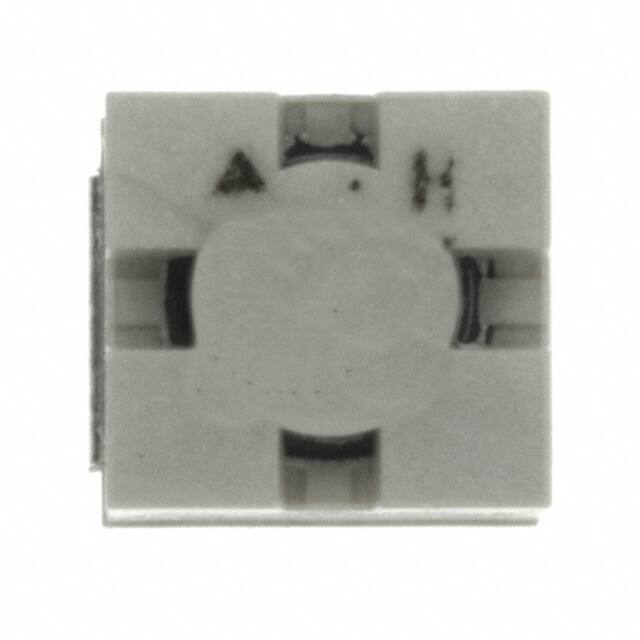

B82442H1225K

SKU: 37239

Manufacturer: EPCOS (TDK)

Inductor General Purpose Molded Wirewound 2200uH 10% 252KHz 30Q-Factor Ferrite 0.075A 28Ohm DCR 2220 Automotive T/R

740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8504.50.80.00
Type	General Purpose
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	2200u
Tolerance	10%
Inductance Test Frequency (Hz)	252K
Maximum DC Current (A)	0.075
Maximum Saturation Current (A)	0.075
Maximum DC Resistance (Ohm)	28
Minimum Quality Factor	30
Quality Test Frequency (Hz)	252K
Minimum Self Resonant Frequency (Hz)	1.2M
Number of Terminals	2
Case Size	2220
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.3
