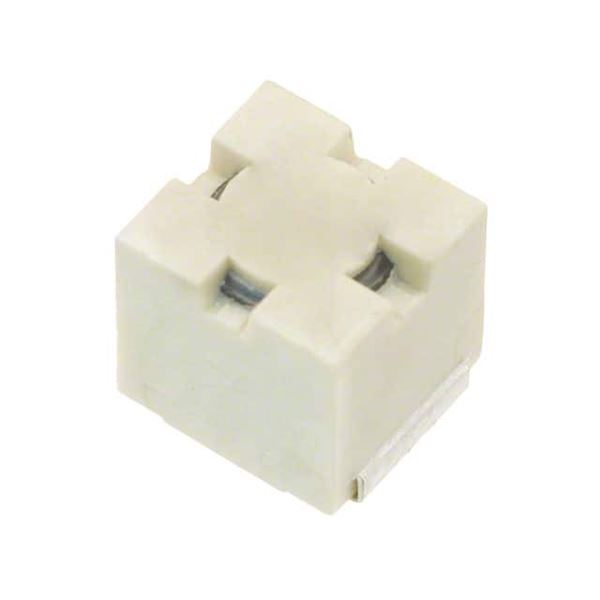

B82442A1332K

SKU: 152548

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Drum Core 3.3uH 10% 7.96MHz 10Q-Factor Ferrite 1.12A 0.064Ohm DCR 2220 Automotive T/R

2440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Drum Core
Core Body Material	Ferrite
Inductance (H)	3.3u
Tolerance	10%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	1.12
Maximum Saturation Current (A)	1.12
Maximum DC Resistance (Ohm)	0.064
Minimum Quality Factor	10
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	34M
Number of Terminals	2
Case Size	2220
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.3
