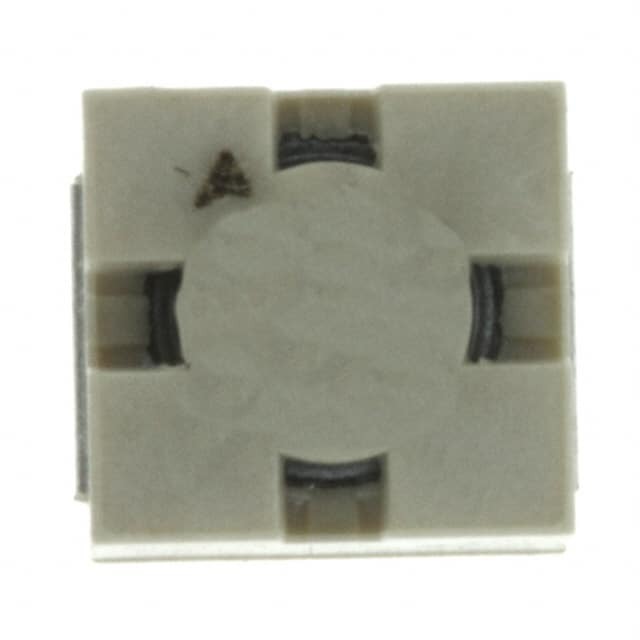

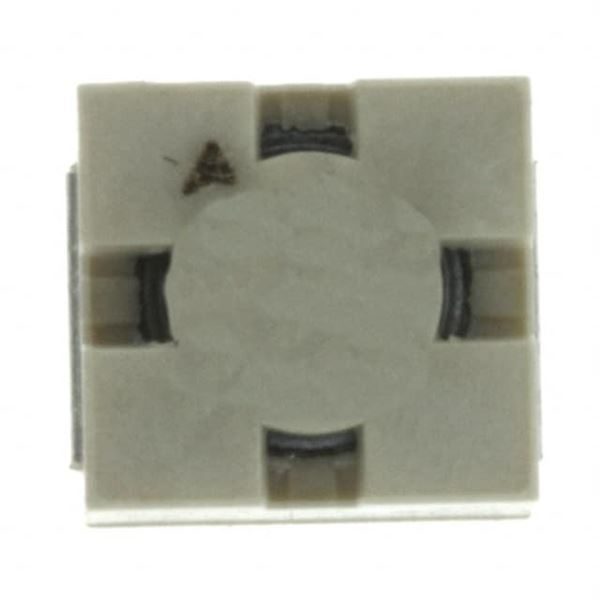

B82442A1106K

SKU: 93671

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Drum Core 10000uH 10% 79.6KHz 30Q-Factor Ferrite 0.025A 120Ohm DCR 2220 Automotive T/R

2620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Drum Core
Core Body Material	Ferrite
Inductance (H)	10000u
Tolerance	10%
Inductance Test Frequency (Hz)	79.6K
Maximum DC Current (A)	0.025
Maximum Saturation Current (A)	0.025
Maximum DC Resistance (Ohm)	120
Minimum Quality Factor	30
Quality Test Frequency (Hz)	79.6K
Minimum Self Resonant Frequency (Hz)	0.5M
Number of Terminals	2
Case Size	2220
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	5.9
Terminal Form	Surface Mount
Depth (mm)	5.3
