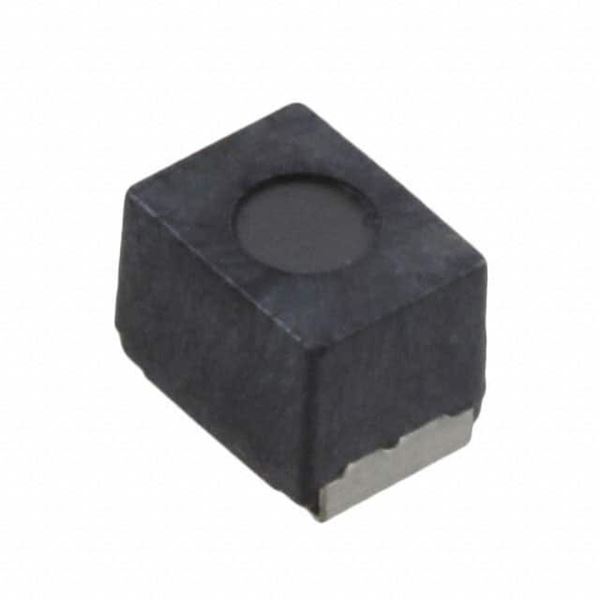

B82432T1684K

SKU: 23038

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Molded Wirewound 680uH 10% 796KHz 20Q-Factor Ferrite 0.08A 23Ohm DCR 1812 Automotive T/R

600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	680u
Tolerance	10%
Inductance Test Frequency (Hz)	796K
Maximum DC Current (A)	0.08
Maximum Saturation Current (A)	0.139(Typ)
Maximum DC Resistance (Ohm)	23
Minimum Quality Factor	20
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	2.6M
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	4.7
Terminal Form	Surface Mount
Depth (mm)	3.4
