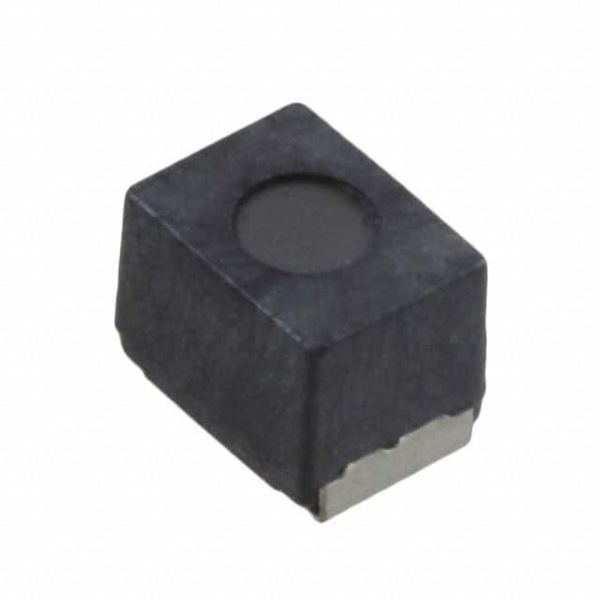

B82432T1332K

SKU: 25080

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Molded Wirewound 3.3uH 10% 7.96MHz 10Q-Factor Ferrite 0.9A 0.19Ohm DCR 1812 Automotive T/R

2250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	3.3u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	0.9
Maximum Saturation Current (A)	1.97(Typ)
Maximum DC Resistance (Ohm)	0.19
Minimum Quality Factor	10
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	50M
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	4.7
Terminal Form	Surface Mount
Depth (mm)	3.4
