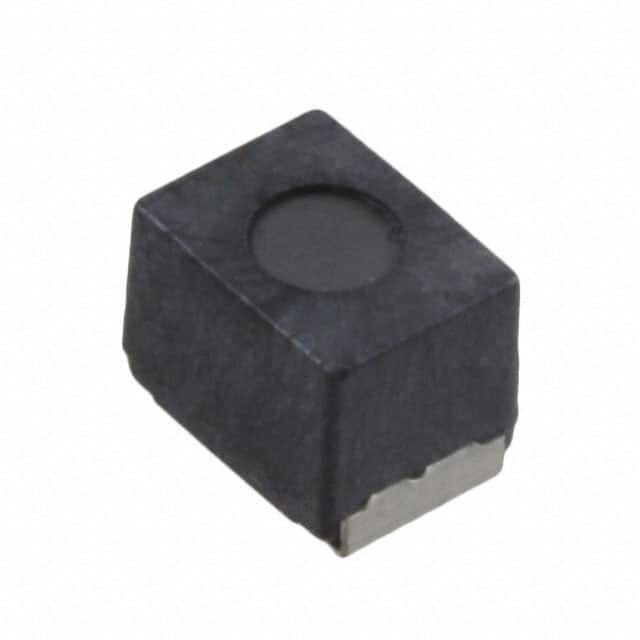

B82432T1102K

SKU: 138364

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Molded Wirewound 1uH 10% 7.96MHz 10Q-Factor Ferrite 1.3A 0.08Ohm DCR 1812 Automotive T/R

1730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	1u
Tolerance	10%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	1.3
Maximum Saturation Current (A)	3.3(Typ)
Maximum DC Resistance (Ohm)	0.08
Minimum Quality Factor	10
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	110M
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	4.7
Terminal Form	Surface Mount
Depth (mm)	3.4
