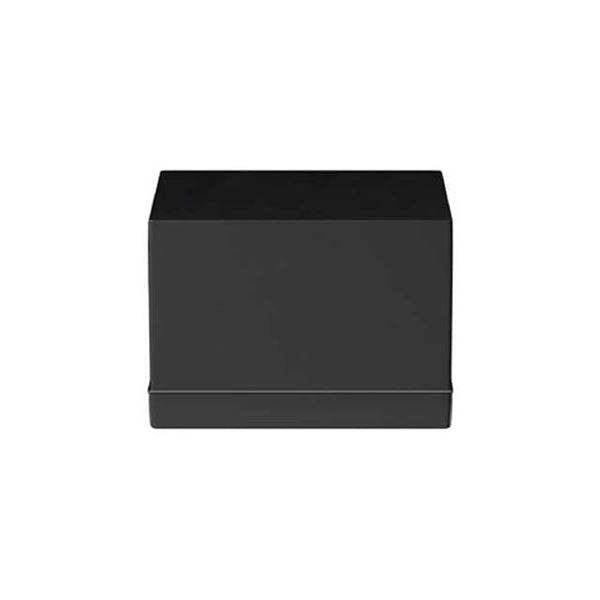

B82432A1473J

SKU: 81618

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Molded Wirewound 47uH 5% 100KHz 40Q-Factor Ferrite 0.21A 2.3Ohm DCR 1812 Automotive T/R

3670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	47u
Tolerance	5%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.21
Maximum Saturation Current (A)	0.21
Maximum DC Resistance (Ohm)	2.3
Minimum Quality Factor	40
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	9.5M
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.8
Depth (mm)	3.5
