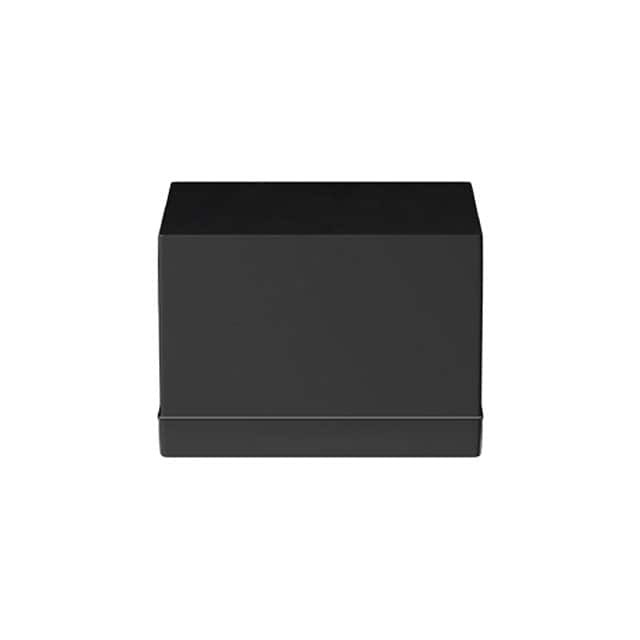

B82432A1224K

SKU: 39317

Manufacturer: EPCOS (TDK)

IND 220Uh 10% 100Khz 30Q-Factor Ferrite 115mA 1812 Blister T/R

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8504.50.80.00
Automotive	Unknown
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	220u
Tolerance	10%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.115
Maximum Saturation Current (A)	0.115
Maximum DC Resistance (Ohm)	7.5
Minimum Quality Factor	30
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	4.6M
Number of Terminals	2
Case Size	1812
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	4.8
Depth (mm)	3.5
