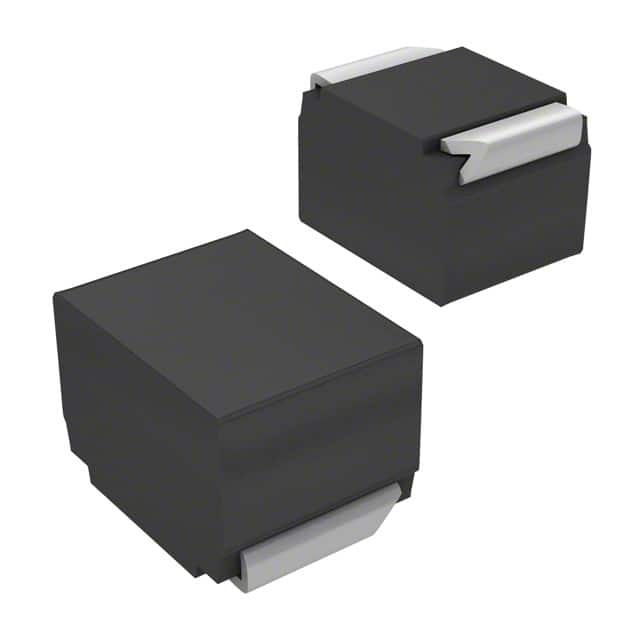

B82422T1271J

SKU: 58520

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Molded Wirewound 0.27uH 5% 25.2MHz 30Q-Factor Ferrite 0.45A 0.21Ohm DCR 1210 Automotive T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	0.27u
Tolerance	5%
Inductance Test Frequency (Hz)	25.2M
Maximum DC Current (A)	0.45
Maximum Saturation Current (A)	0.45
Maximum DC Resistance (Ohm)	0.21
Minimum Quality Factor	30
Quality Test Frequency (Hz)	25.2M
Minimum Self Resonant Frequency (Hz)	500M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.5
Depth (mm)	2.8
