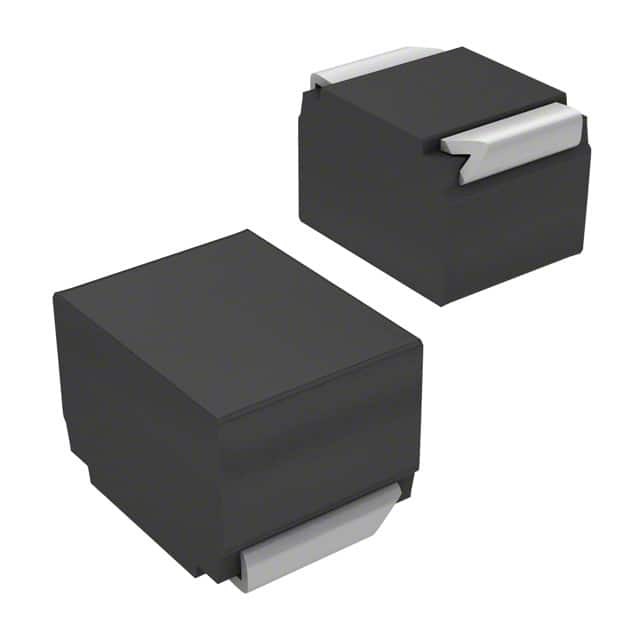

B82422T1153J

SKU: 136263

Manufacturer: EPCOS (TDK)

Inductor General Purpose Chip Molded Wirewound 15uH 5% 2.52MHz 27Q-Factor Ferrite 0.13A 2.8Ohm DCR 1210 Automotive T/R

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	Yes
PPAP	Unknown
Type	General Purpose Chip
Technology	Wirewound
Protection Style	Molded
Core Body Material	Ferrite
Inductance (H)	15u
Tolerance	5%
Inductance Test Frequency (Hz)	2.52M
Maximum DC Current (A)	0.13
Maximum Saturation Current (A)	0.13
Maximum DC Resistance (Ohm)	2.8
Minimum Quality Factor	27
Quality Test Frequency (Hz)	2.52M
Minimum Self Resonant Frequency (Hz)	20M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.5
Depth (mm)	2.8
